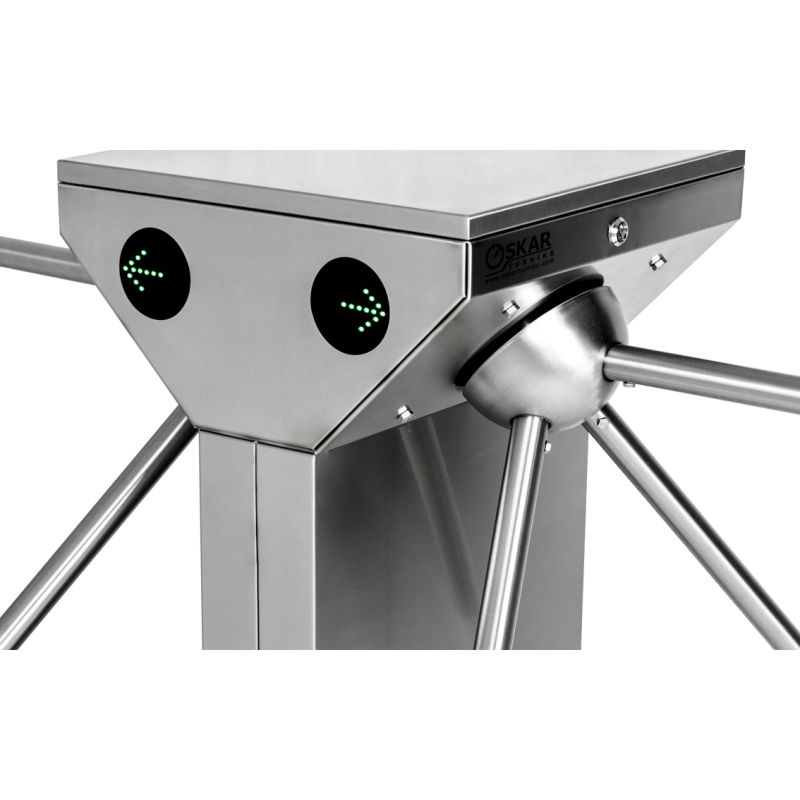

Oskar Tripod Turnstile OTT 162 G

It is a wide single leg double waist type turnstile. It is designed to meet crowded groups such as personnel, visitors, or customers in various social areas such as plaza, subway, factory, prison, table d'hôte or open buffet restaurants, public WC entrances, etc. switchable, (162 G) being the most economical double waist turnstile you can find in the market, it can work for many years in indoor and outdoor environments without any problems, exhibits a stylish and modern appearance thanks to laser-cut joining lines, can be installed easily and quickly thanks to the mounting kit camouflaged in the foot, ( 162 G) with its modern lines and aesthetic structure, offers a very economical and stylish solution for welcoming and organizing, controlling and recording your visitors.

Call Now

STANDARD EQUIPMENT AND FEATURES

  1. ENERGY: 220 VAC 50/60 Hz Optional 110 VAC
  2. POWER CONSUMPTION: Maximum 25 Watts Minimum 10 Watts
  3. INDICATOR: The LED indicator glass is designed to be zero to the body surface, it refers to the system's access control. The LED indicator is offered as standard in all Oskar LED indicator turnstiles, and it can also be produced in different forms optionally.
  4. CONTROL: There is a dry contact data output in the passed direction. Dry contact for transition triggering can be easily connected to 12 VDC, 24 VDC or Various access control units and other peripherals. In addition, the direction selection can be easily adjusted by the users via the dip switches on the card, The turnstile allows free passage in both directions in case of power failure, this is a legal obligation, a contrary system is not optionally offered without the written and official signature of the customer, also for emergencies ( eg: fire, earthquake etc.) there is an extra contact input. All solenoid and led indicator outputs are long-lasting semiconductors, there is also a buzzer on the control card that indicates that a pass is detected. If desired, this buzzer can be disabled by means of the dip switch on the card.
  5. EMERGENCY: There is an emergency contact input on the turnstile main board, emergency systems such as fire and earthquake can be easily connected to this input. In this way, when the emergency contact comes, the indicators turn green and the turnstile switches to free passage in both directions.
  6. BODY: Turnstile body is manufactured from AISI 304 quality stainless steel material as standard, optionally produced from electrostatic oven painted D.K.P material, and multiple color options are optionally available.
  7. EXTERNAL MECHANICAL: All of them, including the hemispherical head and arms, which are called external mechanics, are produced as standard from AISI 304 quality stainless steel material.
  8. ARM DIMENSIONS: Diameter 33.7 length 440 mm is offered as standard, It can be changed according to demand.
  9. MECHANISM: It can work in two directions thanks to its electromechanical motor system, it allows one person to pass with a 120-degree movement, it does not allow a return after 30 degrees, it has a 120-degree locking system thanks to the solenoid coils we specially produced for the turnstile, it does the 120-degree damping with a hydraulic absorber, therefore, it offers a smooth and silent transition, it works with 60% less friction as a result of moving many moving parts on the new design mechanism to the bearing, specially produced solenoid coils, high quality absorber shock absorber used on it, hemisphere made of stainless chrome steel material. Thanks to the head and arms, it has a 80% longer life in general.

OPTIONAL EQUIPMENT AND FEATURES

  1. REMOTE CONTROLLER: It can be easily controlled with an external remote control, the receiver unit can be easily connected to the main board contact input in the turnstile.
  2. SEMI-AUTOMATIC LOWERING: In case of power failure or an emergency signal such as fire, earthquake, the turnstile arm automatically folds 90 degrees and allows the place to be evacuated much more quickly, even if the person lifts the arm without deactivating the emergency contact, it falls again when he releases it, so emergency mode It is not locked in any way without being disabled, when the danger passes or the energy is reloaded, the turnstile arm goes into the locked position after it is manually lifted by the officer.
  3. FULL AUTOMATIC FALLING ARM + MOTORIZED DRIVING: In case of power failure or an emergency signal such as fire, earthquake, the turnstile arm automatically folds 90 degrees and allows the place to be evacuated quickly, and even if the person lifts the arm without deactivating the emergency contact, it falls again when he releases it. With the emergency mode, it is not locked in any way without deactivating the emergency mode, but when the danger passes or the energy is reloaded, the turnstile arm automatically sets itself and goes into the locked position without requiring any manual intervention. MOTOR DRIVING: In normal passages other than emergency, the mechanism switches to the open position after the authorization signal is received, the motor is activated as soon as the person touches the turnstile arm, the person makes the transition by means of the engine without requiring any force, and the person makes the 120-degree cycle softly after the transition. it is damped by the engine again.
  4. COUNTER: Thanks to the digital counter we have produced specially for the turnstile, you can easily track the number of people passing through both directions without the need for an external ACCESS or PC connection, eg: (ENTER 001200 ) (EXIT 000950 ) as 6 digits, you can see directly on the main card inside the turnstile, the counter reset is never shared with second parties except the authorized person.
  5. CERAMIC HEATER: Thanks to the thermostatic ceramic heater placed inside the turnstile, it ensures that it works smoothly in cold weather conditions such as -55 degrees without freezing.
  6. CONTROL: Access trigger can be operated with 12 VDC, 24 VDC, RS 232 -RS 442-485 directly PC controlled, 256 turnstiles can be controlled with a single PC. If desired, it can be used with all access control units and other peripherals. There is a data output in the direction passed, this output can be a digital output or it can be sent directly to the PC in PC control.
  7. EXTRA SECURITY PHOTOCELL: Thanks to the photocell mounted on the body, it provides increased security. When an irregular pass is made under the tripod arm, it can notify the user in the form of loud noise, PC communication, etc., depending on his request.
  8. EXTRA SECURITY LOSER PLATFORM: Thanks to the weight loser platform placed under the turnstile, possible leakage passages to be made by pressing on the turnstile can be reported in the form of loud sound or PC communication, etc., depending on the user's request.
  9. COLORING: With a wide range of colors, all of our models can be colored with electrostatic oven paint, depending on the customer's request.
  10. EXTRAS: Oskar turnstile is able to produce customized solutions for all kinds of turnstiles.
